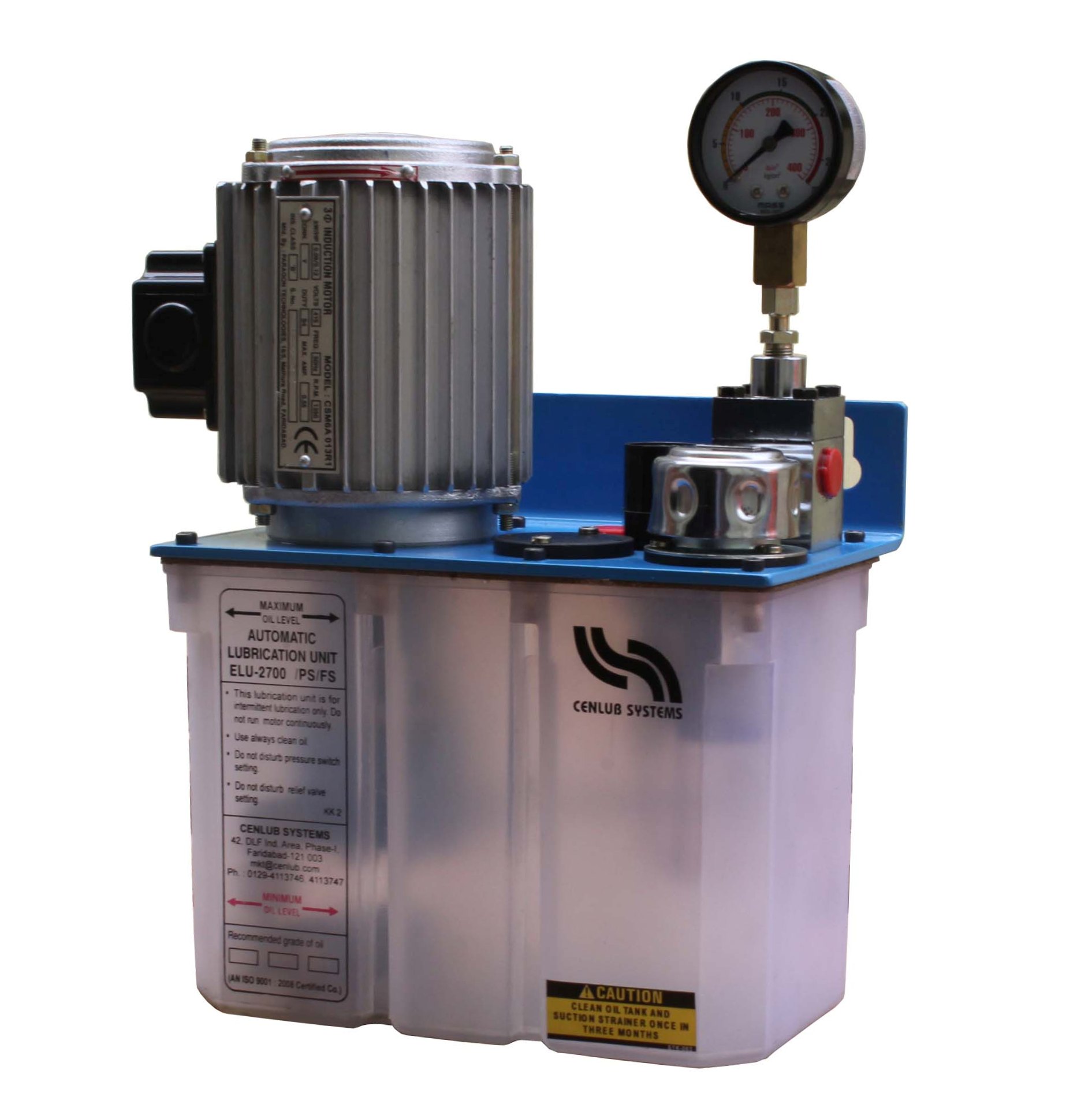

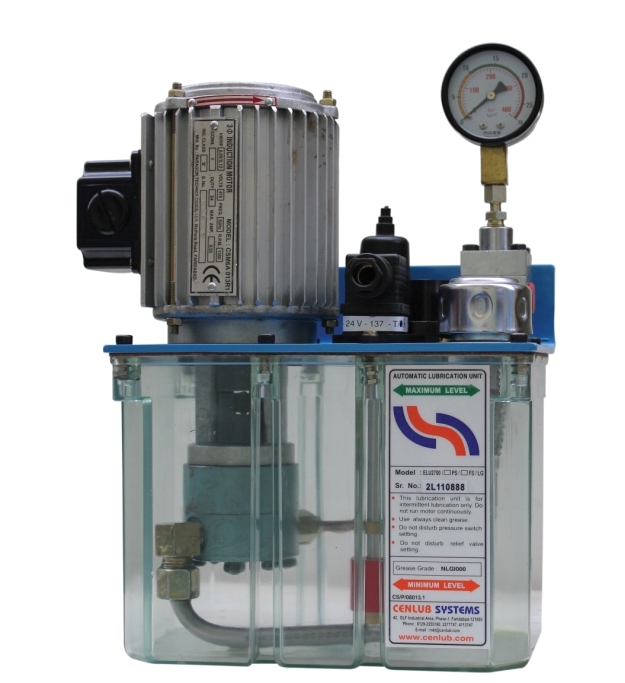

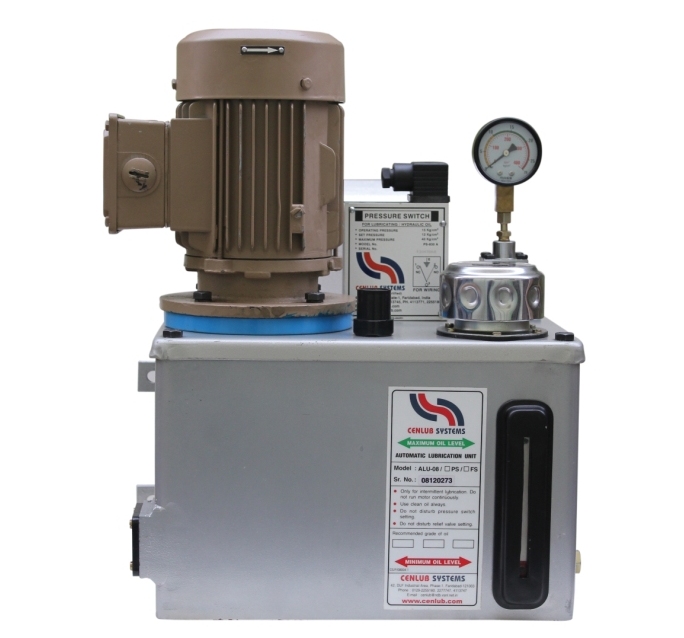

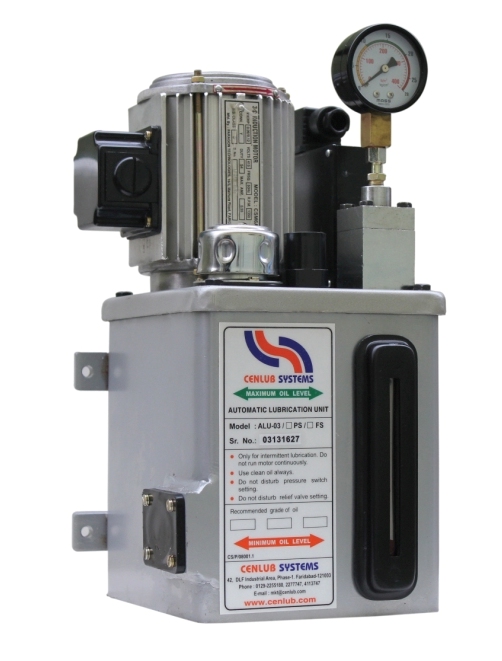

Motorised lubrication units are electric motor driven pumps along with reservoir, oil filler, suction strainer, pressure relief vavle, bleed valve etc. and are suitable for single shot automatic oil lurbication. These motorised lubrication units are to be run intermittently with metering cartridges for oil distribution.
Common Applications
Metering Cartridges are used in Single Shot Oil Lubrication System on various machines such as Machine Tools, Textile Machines, Die Casting Machines, Sheet Metal Working Machines, Shearing and Press Brakes, Metal Forming Machines, Rubber Mixing Machines, Printing Machines, Injection/Blow Moulding Machines, Presses and Hammers, Packaging Equipment, Pharmaceuticals Machines, Food Processing Equipment etc.
Automatic Lubrication Unit OIL are broadly classified in following series :
| Without PS and FS |
Technical Specifications |
| Without PS and With FS
These units come with a float switch which is used for low level sensing. |
Technical Specifications |
| With PS and With FS |
Technical Specifications |
| Honey
Honey Series - Next Gen Features:
TECHNOLOGY: Advanced Gear Pump
PRESSURE CAPABILITY: High Pressure (up to 50 bar)
POWER CONSUMPTION: 40 Watts Ultra-Efficient
WEIGHT: 3.35 Kg (27% less weight)
LIFE SPAN: High life span
SIZE: Compact Size |
Technical Specifications |
