Multiline Lubricator (also called Radial Lubricator or Multipoint Lubricator) is a user friendly and cost-effective solution for centralized and Automatic Grease Lubrication Systems of multiple points in a machine or equipment. Multiline Lubricator combines multiple pumps into a single entity sharing a common reservoir and common drive.
Common Applications
Rolling Mills, Calendering Machines, Sugar Mills, Cement plants, Hydroturbines, Stone Crushers, Forging Hammers, Batch Mixers
Motorized Multiline Grease Lubricators are broadly classified in following series :

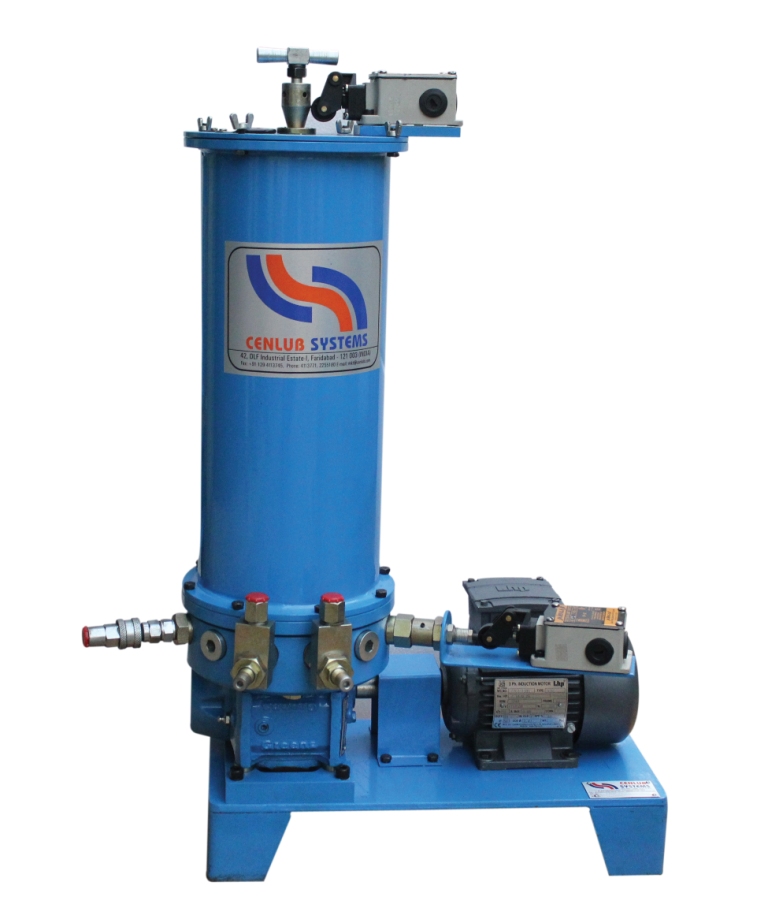

MMPGL-02
MMPGL-02 are medium range multi point lubricators with maximum number of outlets being 12 and maximum reservoir size being 9 litres. Per outlet per stroke output is adjustable - 0.05 cc to 0.25 cc with screw type adjustment. The standard RPM is 28 with Gear Box Ratio 50:1. However, other Ratios and RPMs are available for specific requirements. |
![]() Technical Specifications |

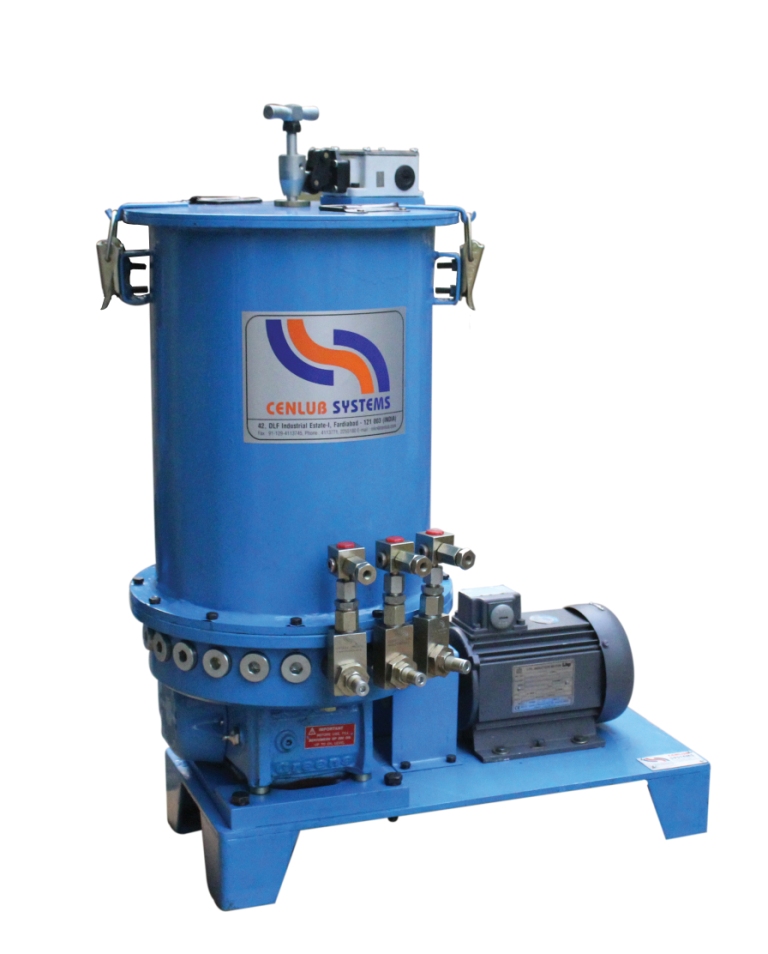

MMPGL-03
MMPGL-03 are the bigger range multi point lubricators with maximum number of outlets being 24 and maximum reservoir size being 50 litres. Per outlet per stroke output is adjustable - 0.05 cc to 0.25 cc with screw type adjustment. The standard RPM is 28 with Gear Box Ratio 50:1. However, other Ratios and RPMs are available for specific requirements. |
![]() Technical Specifications |
